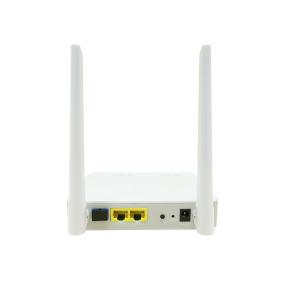

EPON ONT 1 GE 1 FE Wi-Fi FHR1201KB Integrate Auto Detection

Brand Name : DAWNERGY

Model Number : FHR1201KB

Certification : CE,FCC

Place of Origin : CHINA

MOQ : 100pcs

Price : 29USD

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 2K Per Day

Delivery Time : 15 working days

Packaging Details : Carton Box

Name : EPON ONT

Fiber port : 1 EPON interface, SC single-mode/single-fiber

Downstream rate : 1.25Gbps

Upstream rate : 1.25Gbps

Wavelength : Tx 1310nm, Rx 1490nm

Fiber interface : SC/PC

Throughput : 900Mbps or more

Contact Now

Overview

EPON ONT HGU FHR1201KB is developed for the broadband access market based on EPON technology to meet the needs of broadcasting and Telecom operators for broadband access and FTTH fiber-to-the-home. Together with EPON OLT central office products and EMS network management system, it provides users with complete EPON based FTTH solutions. It meets the requirements of IEEE802.3ah and China Telecom EPON equipment technical requirements specification, and has good compatibility with the mainstream manufacturer's central office OLT. The device supports the up-link and down-link symmetric 1Gbps transmission rate, providing users with good QOS guarantee and flexible bandwidth allocation. Ethernet business and IP integrated services. Integrated wireless function, fully compliant with 802.11 n/b/g wireless standard protocol, built-in high-gain directional antenna, wireless transmission rate up to 300Mbps, with strong penetrating power and wide coverage, providing users with more efficient data transmission guarantee.

Characteristics

  • Plug and play, integrate auto detection, auto configuration and auto firmware upgrading;
  • Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function;
  • Support diagnostic monitoring and remote disabling of fiber optical;
  • Support 802.11n Wi-Fi(T/R)function;
  • Support NAT and firewall function;
  • WAN support networking bridge, route and bridge/route mixed mode;
  • Full speed 1G non-blocking switching
  • 2048 MAC address table
  • Support VLAN, transparent, tag, translation, trunk, etc.
  • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
  • Integrated IEEE802.1p QoS with four level priority queues
  • Support IPv4/ IPv6 IGMP snooping and MLD snooping
  • Support bridge, route and bridge/route mixed mode

Specification

Technical Items

 Descriptions
Dimension 130*107*31mm(length*width*height)
Net weight ≤0.2Kg
Fiber port

1 EPON interface, SC single-mode/single-fiber,

Downstream rate 1.25Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-27dBm (1490nm)
WLAN IEEE802.11b/g/n,300Mbps, a built-in antenna
LAN 1*10/100/1000Mbps+1*10/100Mbp adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Throughput can reach 900Mbps or more
DC power 12V 1A, external AC-DC power adapter
Button Reset, power, WIFI
Power ≤10W
Operation Working temperature: -5〜+55℃ working humidity:10〜90％(non-condensation)
Storage Storage temperature: -30℃〜+60℃ storage humidity: 10〜90％(non-condensation)
